Windows Server 2025 Installation

1. Basic install

  • 1.1 Boot from the CD, confirm the system installation language and time zone, then click Next.

image-20251127161817414

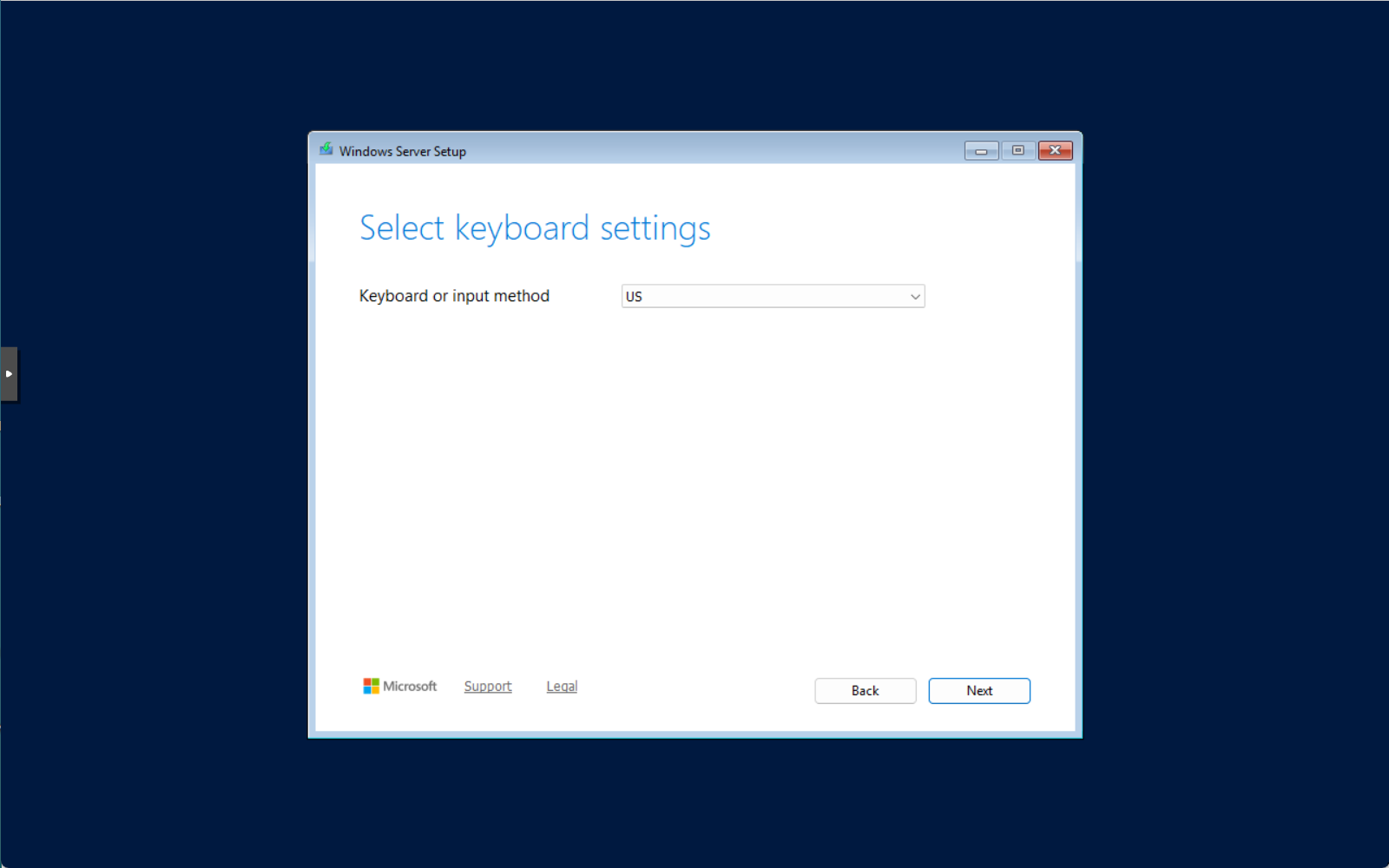

  • 1.2 Select Keyboard or input method, and click Next

image-20251127162054006

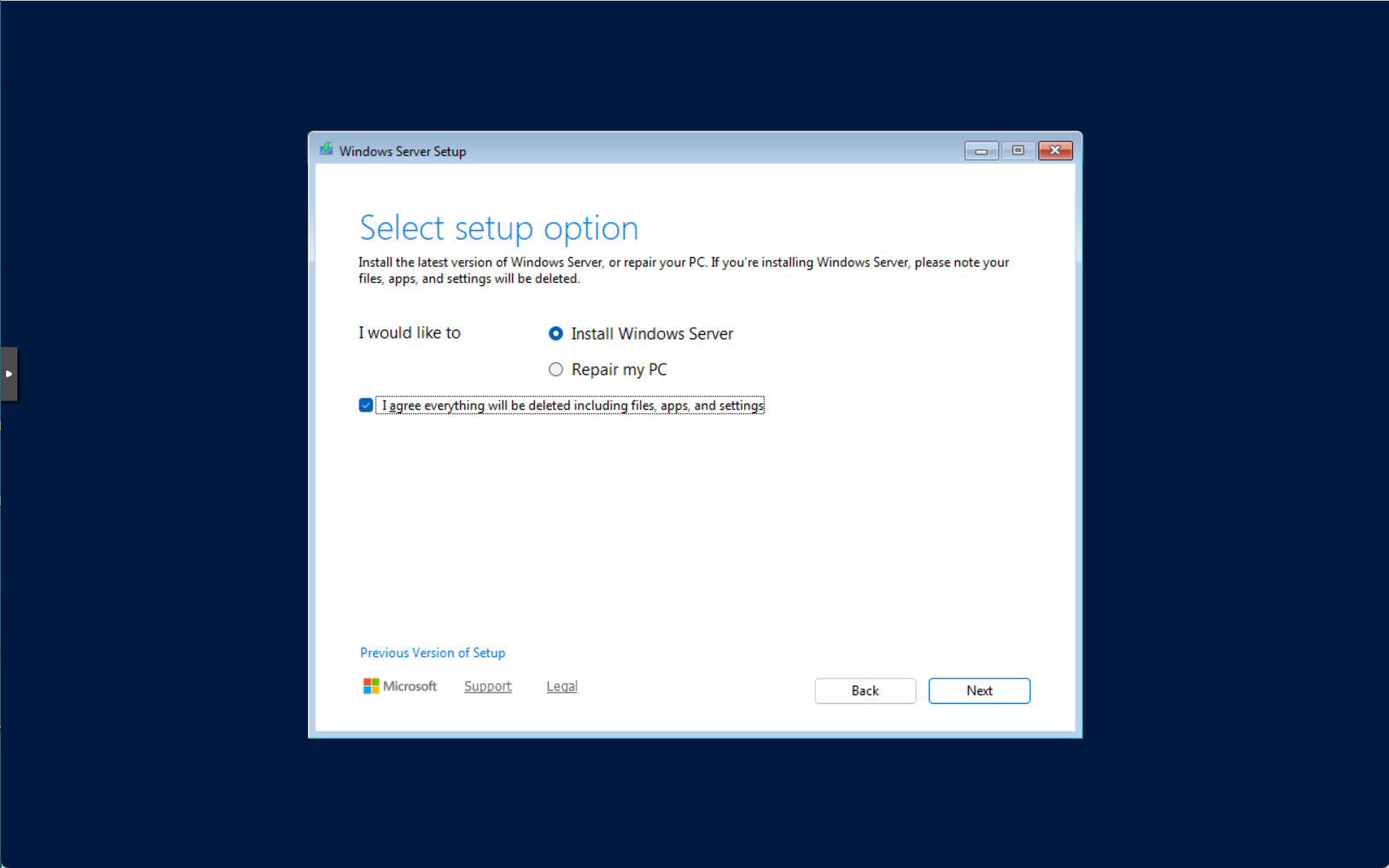

  • 1.3 Select install type with Install Windows Server, and checked I agree everything will be deleted including files, apps, and settings, then click Next

image-20251127162322000

  • 1.4 Select the system version to be installed. (Please select the one with Desktop Experience suffix)

image-20251127162432088

  • 1.5 Click Accept to accept license

image-20251127162548631

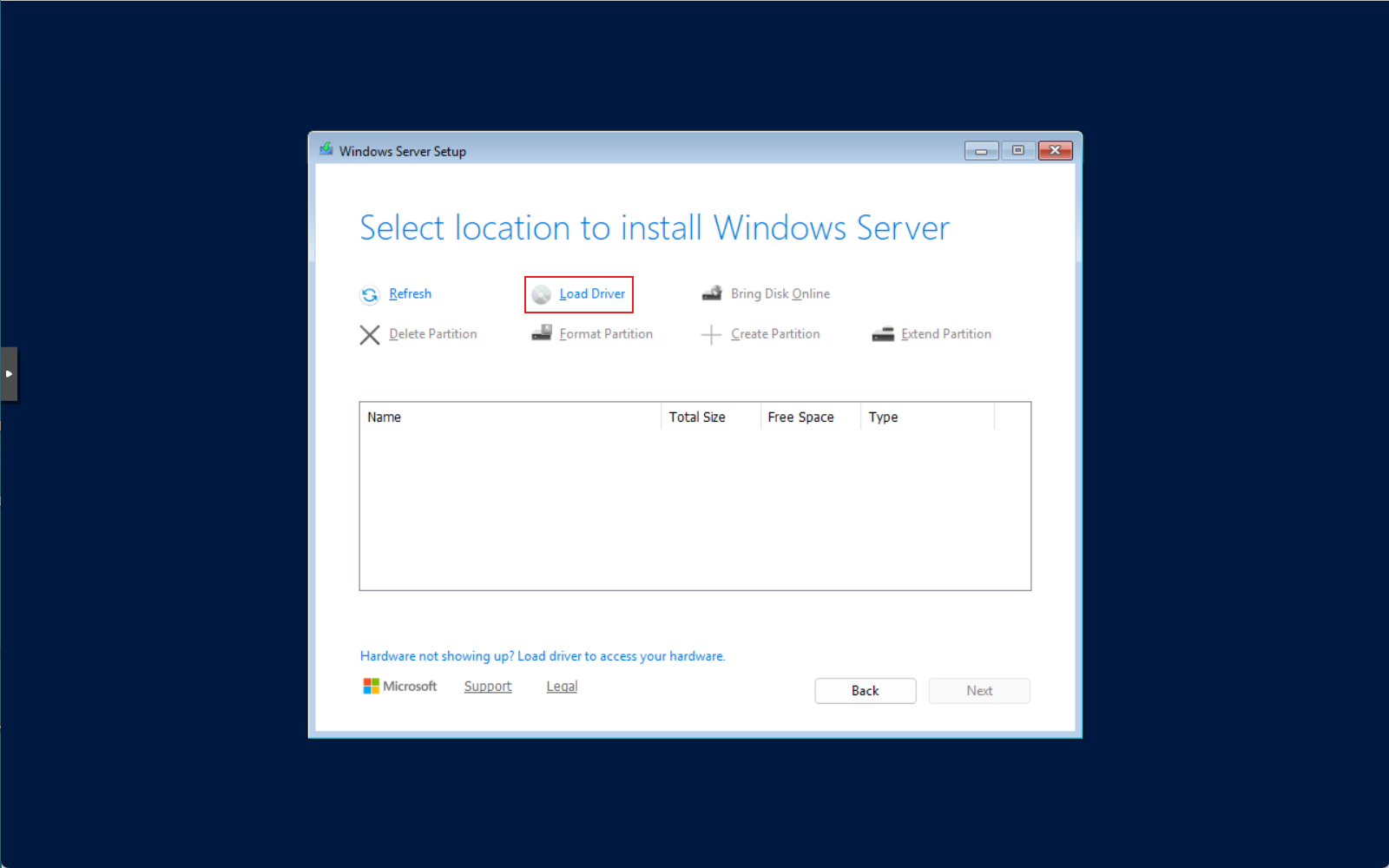

  • 1.6 If you need to create a new partition as the system disk, select new. (The system disk space should be greater than or equal to 100G), and the entire disk is used as the system disk, then click Next directly.

if not found disk, please click Load driver to install virtio driver

image-20251127162756497

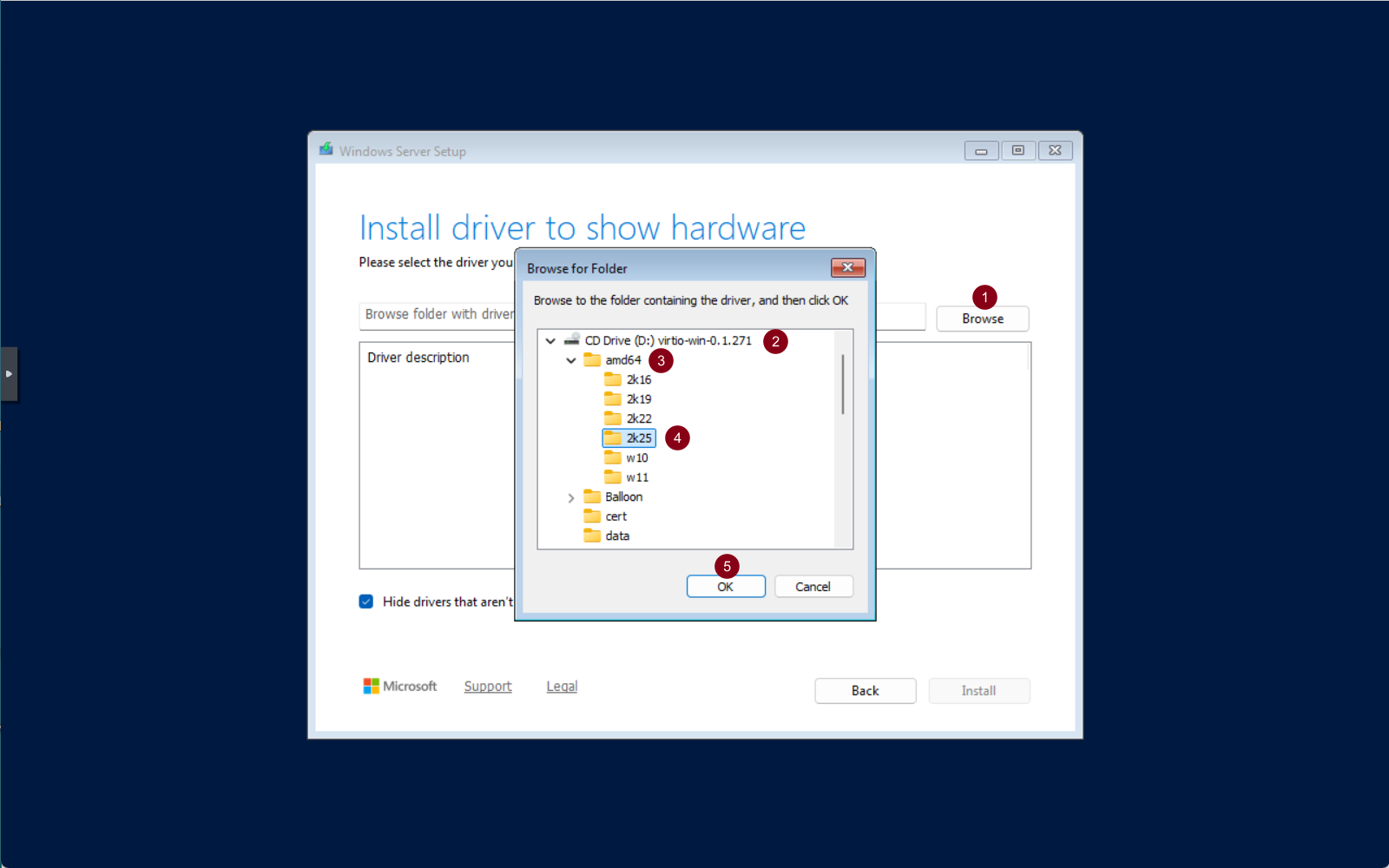

Click Browse, and select virtio-win driver, expand to amd64 -> 2k25, then click OK

image-20251127164024067

Select driver, and click Install

image-20251127164047230

Select disk, and click Next

image-20251127164120055

  • 1.7 Ready to install, and click Install

image-20251127164143322

  • 1.8 Wait for the system and driver related programs to be installed, and it should auto restart

image-20251127164218019

  • 1.9 Waiting OS install

image-20251127164909409

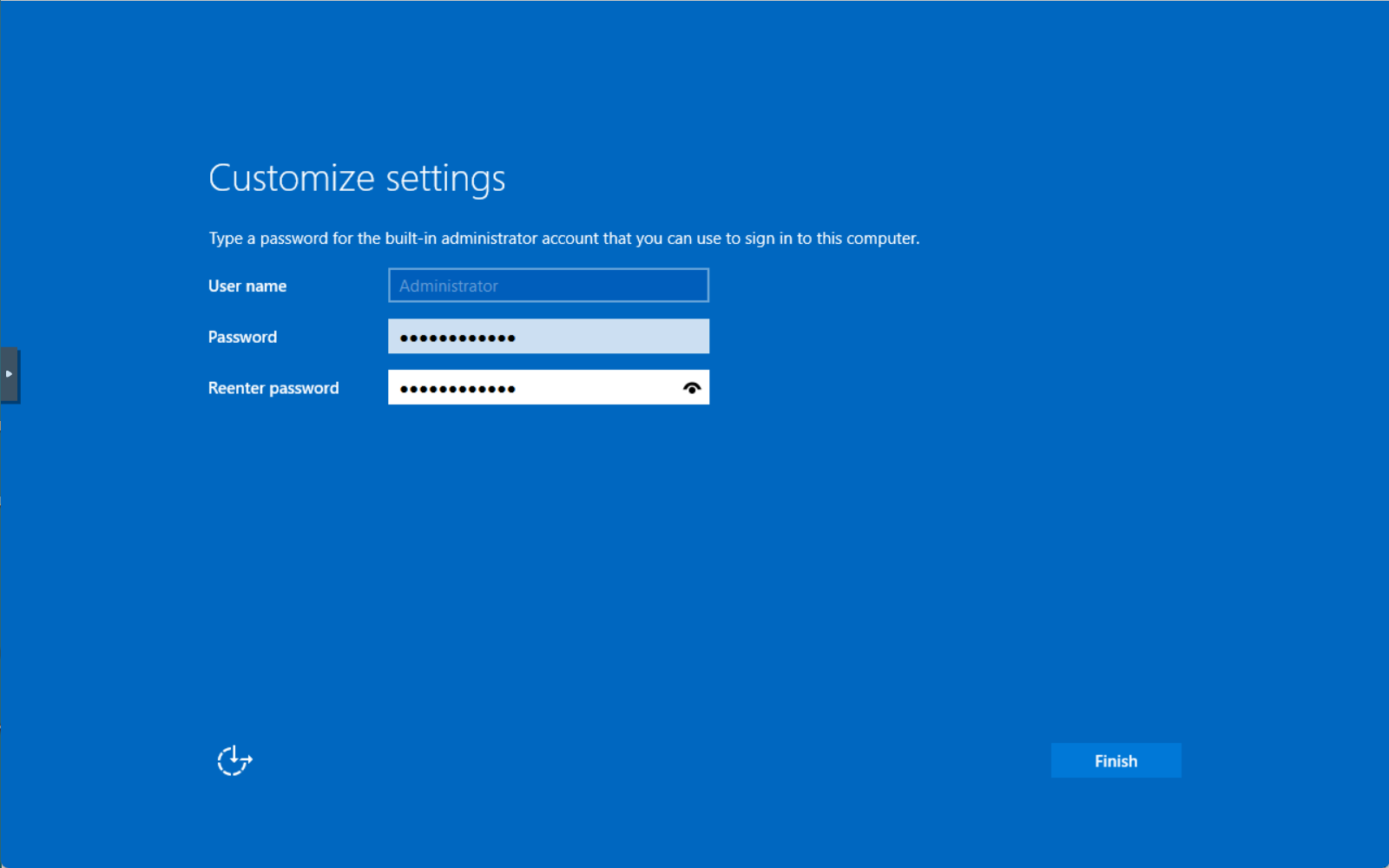

  • 1.9 After the installation is complete, please set the password of the management account (the privileged account needs more than 15 yards), and then select Finish.

image-20251127165317304

2. Basic settings

  • 2.1 Time and timely area proofreading. Control Panel→Clock and Region→Date and Time→Change adapter settings

image-20251127165846637

  • 2.2 IP address settings.

If install OS with VM, please install vmtools first

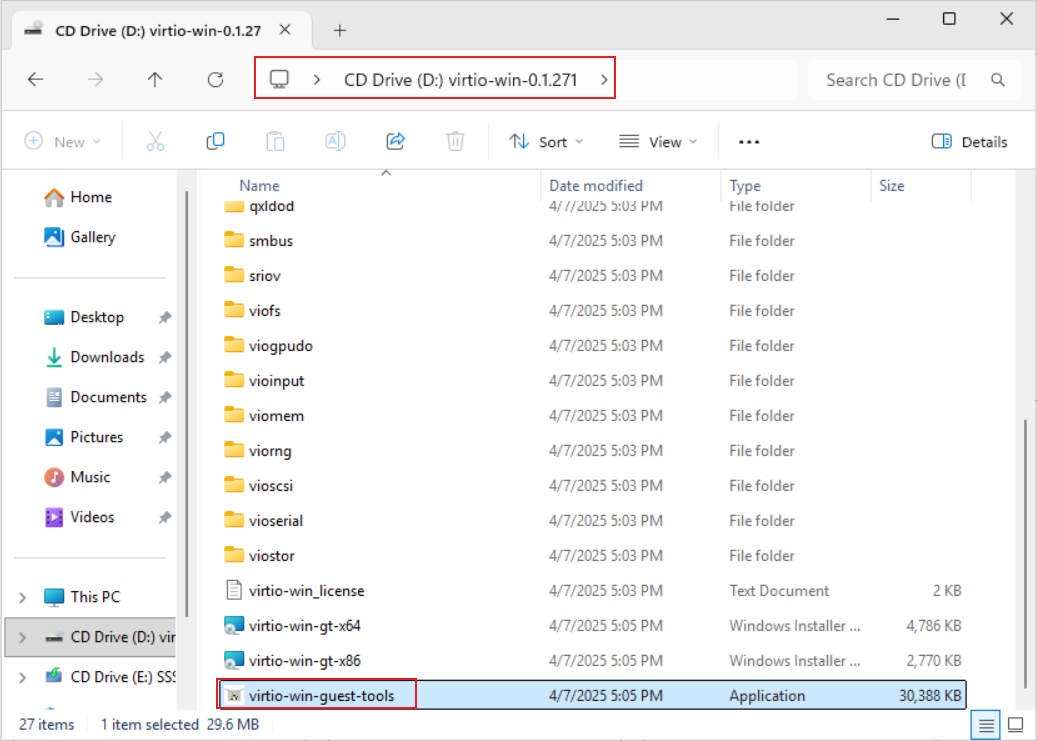

open with virtio driver, and double click virtio-win-guest-tools to install vmtools by default settings.

image-20251127170132294

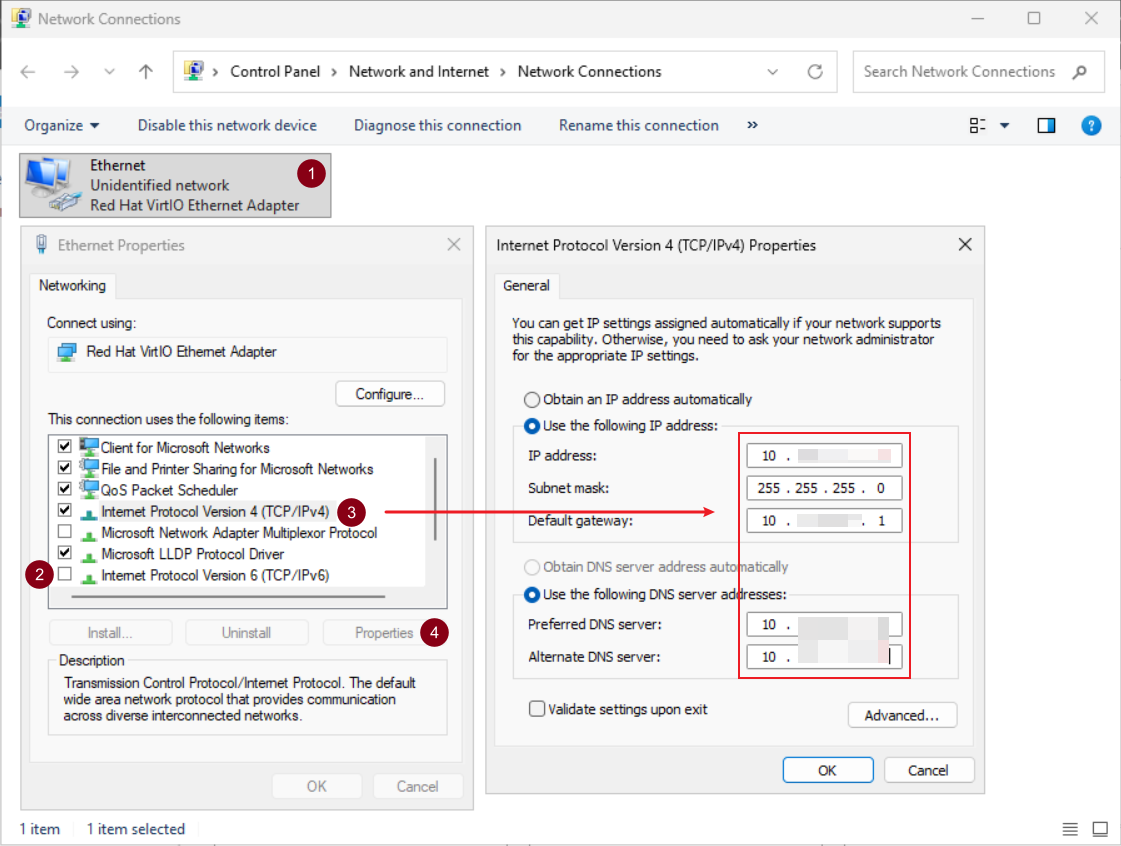

Control Panel→Network and Internet→Network and Sharing Center→Select Network Adapter right-click and select Properties

image-20251127171753712

  • 2.3 Turn off the system firewall

(Note: After joining the domain, you need to turn off the firewall again.). Control Panel→System and Security→Windows Defender Firewall→Turn Windows Defender Firewall on or off

image-20251127172203173

  • 2.4 Enable remote desktop

Right-click This PC to select Properties, switch to the Remote tab, and open Remote Desktop.

image-20251127172446543

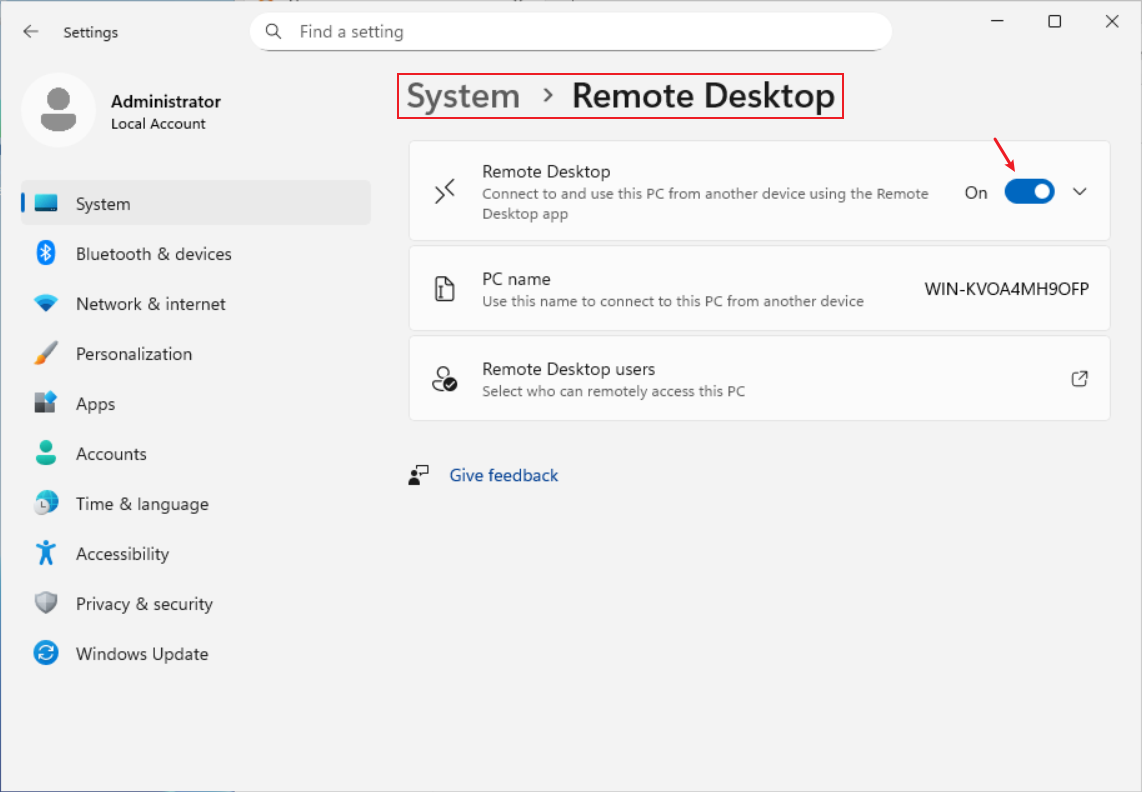

Click system -> Remote Desktop, and enable Remote Desktop

image-20251127172920684

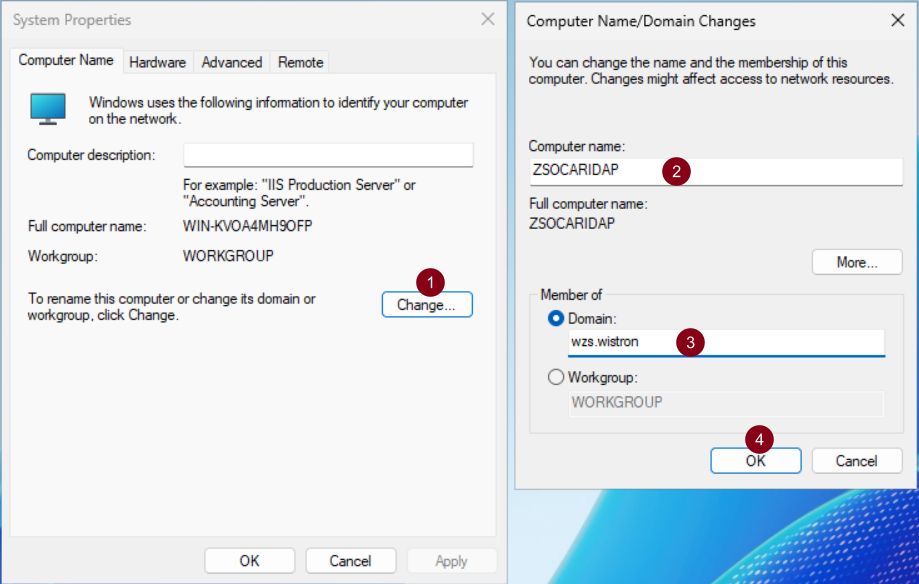

  • 2.5 Change hostname and join domain

Right-click This PC to select the properties, click the Rename button, enter the server name and select the domain you want to join (you need to ask the AD administrator to help you add it).

OA: wzs.wistron
SFCS: sfcs.wzs
TE: Don't join the domain

image-20251127173314985

  • 2.6 Add the SE group to the Administrator group.

Computer Management→Local Users and Groups→Groups→ Right-click Administrators to select the property

OA: WZSITSE
SFCS: WZSOTSE

image-20251127174807932

3. Software setup

  • 3.1 Antivirus software installation

OA antivirus installation path:
\10.41.22.11\Apps\Anti-Virius\ApexOne\14039\WZS\OA_Server.msi SFCS\TE antivirus installation path:
\10.41.22.11\Apps\Anti-Virius\ApexOne\14039\WZS\SFC_Server.msi

image-20251127175430581

Check apexone installation status

image-20250524182850205
